Radial Oriented Ring Magnet

Shape& Specification

Radial Oriented Ring Magnet
 Radial Oriented Ring Magnet
 Radial Oriented Ring Magnet
 Radial Oriented Ring Magnet
Key word: Permanent magnet, Radial Ring magnet, Multipole Radial Ring magnet, NdFeB Magnet, Nd Magnet,

Material: N35, N45, 42M, 35SH, 38SH, 40SH, 35UH, 38UH grade etc

Application: Industrial Motor, Servo Motor, Robot Driving Motor, Stepper motor etc.
Description
Permanent Nd Magnet in Radial Oriented Ring shape, it is very popular used in Servo motor, Brushless motor, Stepper motors, Automotive Motor, Robot Driving Motor applications.

10 poles Radial Ring Magnet Surface Flux Density Distribution Chart


Why choose us?

1)     Over decades experience in NdFeB manufacturing and Marketing
2)     Strategic partner of several world top 500 Enterprise, operating well under TS16949
3)     Samples and trial orders are welcome
4)     Competitive Price & Short Lead Time, cause it is directly from real producer.
5)     Professional suggestion or advice is available when you have doubts in design.

Product Information:


Product name

Permanent Radial Oriented Ring Magnet, Nd Ring magnet, Neo Ring magnet, Rare earth Ring magnet

Material

Neodymium iron boron, Neo Magnet, Nd Magnet, Rare earth Magnet

Grade & working Temperature

Grade

Max Operating Temperatures

N35-N50

80°C     (176°F)

35M-48M

100°C   (212°F)

35H-45H

120°C   (248°F)

33SH-42SH

150°C   (302°F)

28UH-38UH

180°C   (356°F)

Shape

Radial Oriented Ring Magnet, but Disc, Block, Cylinder, Arc and Irregular shape are also available

Coating

Ni, Ni-Cu-Ni, Zinc, Colored Zinc, Epoxy etc.



Magnetized direction

Radial magnetization, but Thickness, Axially, Diametrical, Multipoles are also available, Customized magnetization is welcome.

Application

Servo motor, Brushless motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Loudspeaker, Magnetic switch, sensor etc.

Certificate

ISO/TS 16949, ISO9001, ISO14001, RoHS, REACH

Packing

Standard sea or air packing, such as carton, wooden box, pallet etc.

Lead time

50 days for samples ( 30 days for new Mold, 20 days for production).
15-20 days for bulk production.

Transportation

All shipping methods are available: courier (TNT, DHL, FedEx, UPS), air or sea.
Shipper or freight forwarder can be appointed by either purchaser or TC.


Product Advantages:

Precision of geometry
Variety of magnetic configuration
Magnetic field distribution is very Homogeneous
Very smooth of motor performances
Easily to realize automatic assembly
Huge marketing potential
Labor-saving


1.Production flow of Permanent NdFeB Magnet:

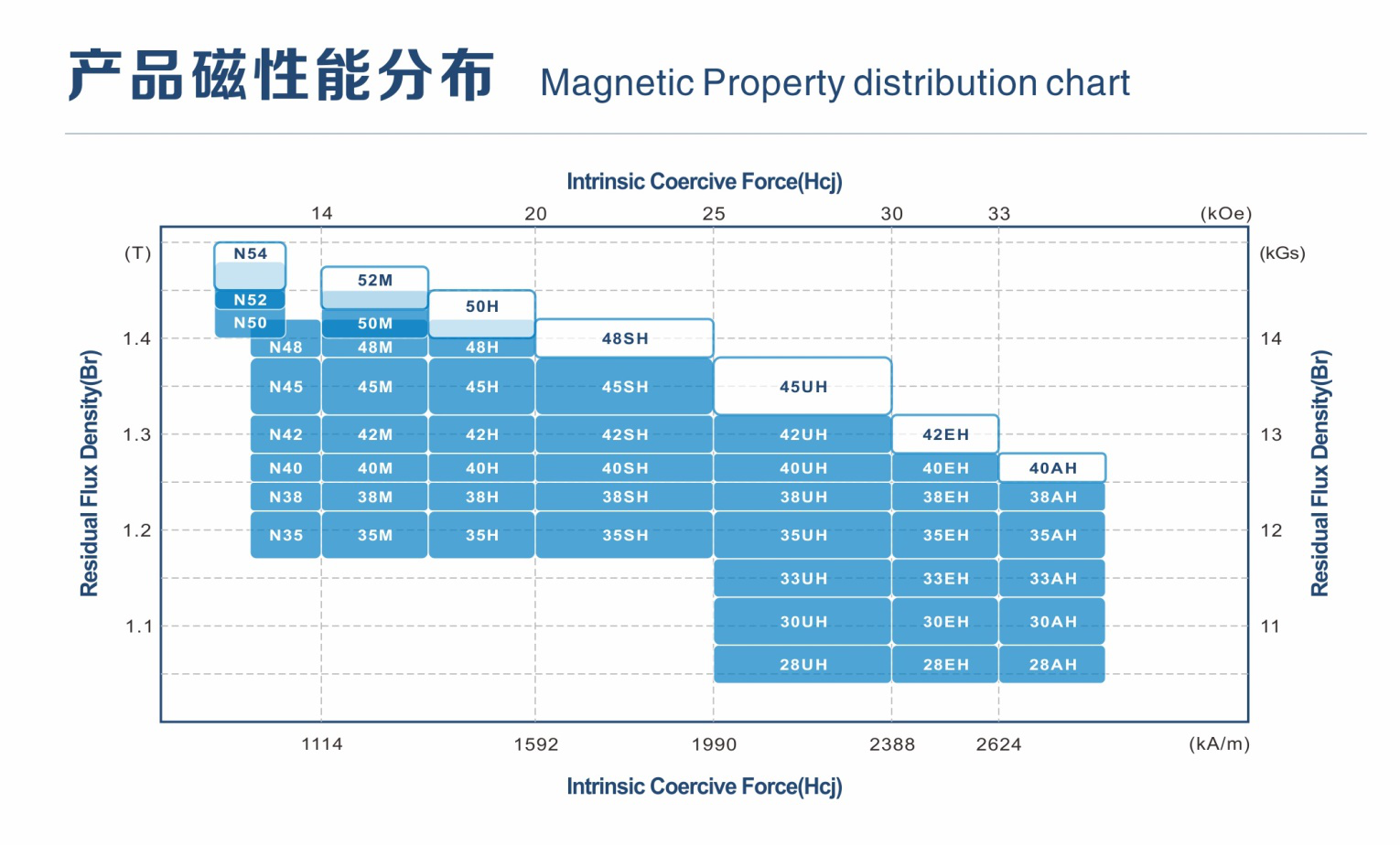

 2, Magnetic Property Distribution Chart of Permanent NdFeB Magnet

3, Available coating of Permanent NdFeB Magnet:
Ni, NiCuNi, Electroless Nickel, Zinc, Colored Zinc, Epoxy, Passivation, Phosphated, Everlube, Au, Sn etc.


4, Magnetized Direction of NdFeB magnet:
Thickness, Axially, Diametrical, Multipoles and Radial magnetization are available, Customized magnetization is welcome.
5, Applications of Permanent NdFeB Magnet:
Radial Oriented Ring Magnet are widely used in Servo motor, Brushless motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Loudspeaker, Magnetic switch, sensor etc.

6, Packing of Permanent NdFeB Magnet:
Standard sea or air packing, such as carton, wooden box and pallet etc.



7, Engineering and Research center of Permanent NdFeB Magnet:
Our engineering center occupied over 600 square meters with advanced analytical methods and full set of sophisticated test apparatuses, it not only assured the top quality of TC product, but also the foundation of our research and technic improving. The main test apparatuses are as follow:

ICP Tester, Scanning Electron Microscope, Laser Particle Size Analyzer, HAST Tester, Projectors, X-Ray Thickness Tester, Carbon-Sulfur Analyzer, Oxygen Analyzer, Hysteresigraph, Salt Spray Tester, Electrothermal Aging Test Box, Oxyhydrogen Tester, Magnetic field distribution tester, Image Dimension Measuring System, Vickers Hardness Tester, Magnetic Deviation Angle Tester, Universal Testing Machine etc.
